DSF07S30U(TPH3,F)

Part NumberDSF07S30U(TPH3,F)

ManufacturerToshiba Semiconductor and Storage

DescriptionDIODE SCHOTTKY 30V 700MA USC

DatasheetDSF07S30U

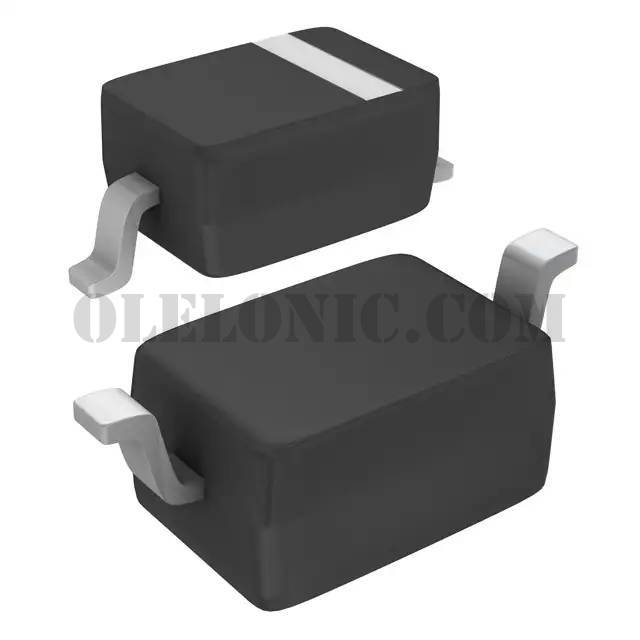

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 700mA Surface Mount USC

To learn about the specification of DSF07S30U(TPH3,F), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSF07S30U(TPH3,F) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSF07S30U(TPH3,F).
We are offering DSF07S30U(TPH3,F) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSF07S30U(TPH3,F) - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

DSF07S30U

Standard Package

3000

Manufacturer

Toshiba Semiconductor and Storage

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io)

700mA

Voltage - Forward (Vf) (Max) @ If

450mV @ 700mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

50µA @ 30V

Capacitance @ Vr, F

170pF @ 0V, 1MHz

Mounting Type

Surface Mount

Package / Case

SC-76, SOD-323

Supplier Device Package

USC

Operating Temperature - Junction

125°C (Max)
