Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DSF01S30SL
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	500mV @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	9.02pF @ 2V, 1MHz
Mounting Type	Surface Mount

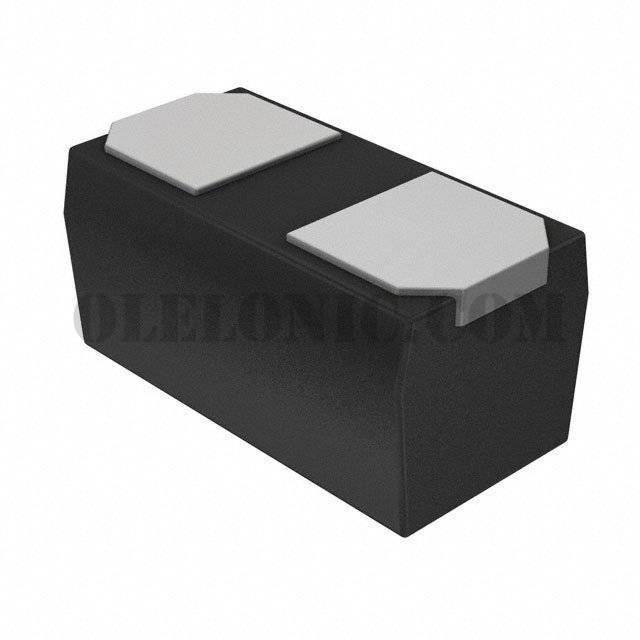

Package / Case	0201 (0603 Metric)
Supplier Device Package	SL2
Operating Temperature - Junction	125°C (Max)
