DSC9G02C0L

DSC9G02C0L

Part NumberDSC9G02C0L

ManufacturerPanasonic Electronic Components

DescriptionRF TRANS NPN 20V 650MHZ SSMINI3

DatasheetDSC9G02 View All Specifications

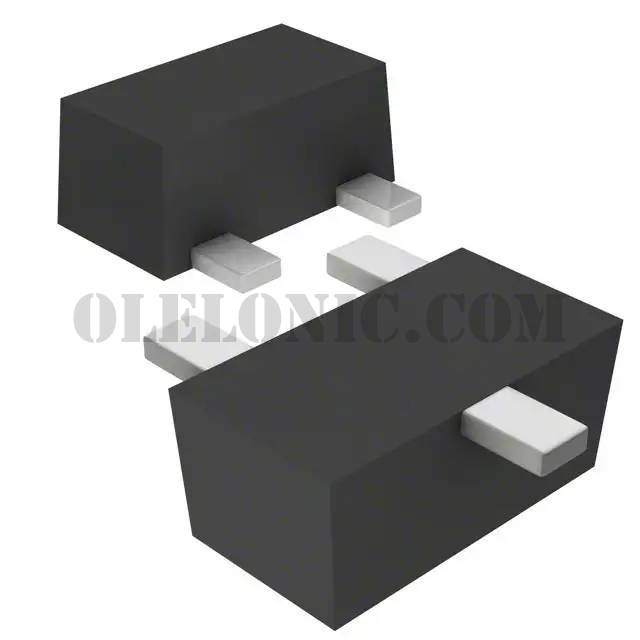

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 20V 15mA 650MHz 125mW Surface Mount SSMini3-F3-B

To learn about the specification of DSC9G02C0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSC9G02C0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSC9G02C0L.
We are offering DSC9G02C0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSC9G02C0L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	DSC9G02 View All Specifications
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	20V
Frequency - Transition	650MHz
Noise Figure (dB Typ @ f)	3.3dB @ 100MHz
Gain	24dB
Power - Max	125mW
DC Current Gain (hFE) (Min) @ Ic, Vce	65 @ 1mA, 6V
Current - Collector (Ic) (Max)	15mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	SSMini3-F3-B
Base Part Number	DSC9G02
