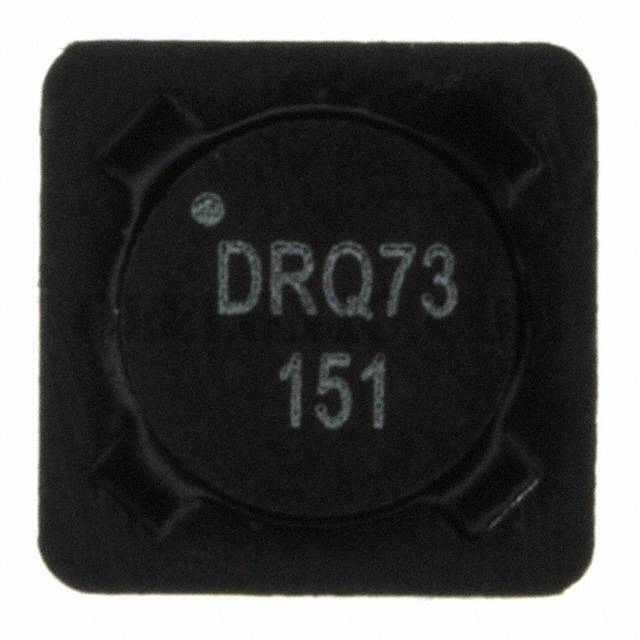

DRQ73-151-R

Part NumberDRQ73-151-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 150.9UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 603.6µH Inductance - Connected in Series 150.9µH Inductance - Connected in Parallel 851mOhm DC Resistance (DCR) - Parallel 580mA Nonstandard

To learn about the specification of DRQ73-151-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ73-151-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ73-151-R.
We are offering DRQ73-151-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ73-151-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

DRQ Series

Standard Package

1350

Manufacturer

Eaton - Electronics Division

Series

DRQ

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

150.9µH

Inductance - Connected In Series

603.6µH

Tolerance

±20%

Current Rating - Parallel

580mA

Current Rating - Series

289mA

Current Saturation - Parallel

650mA

Current Saturation - Series

320mA

DC Resistance (DCR) - Parallel

851mOhm

DC Resistance (DCR) - Series

3.41Ohm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.299" L x 0.299" W (7.60mm x 7.60mm)

Height

0.140" (3.55mm)
