DRQ125-4R7-R

Part NumberDRQ125-4R7-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 5.274UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 21.1µH Inductance - Connected in Series 5.274µH Inductance - Connected in Parallel 10.5mOhm DC Resistance (DCR) - Parallel 7.18A Nonstandard

To learn about the specification of DRQ125-4R7-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ125-4R7-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ125-4R7-R.
We are offering DRQ125-4R7-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ125-4R7-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	600
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	5.274µH
Inductance - Connected In Series	21.1µH
Tolerance	±20%
Current Rating - Parallel	7.18A
Current Rating - Series	3.59A
Current Saturation - Parallel	9.71A
Current Saturation - Series	4.86A
DC Resistance (DCR) - Parallel	10.5mOhm
DC Resistance (DCR) - Series	42mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard

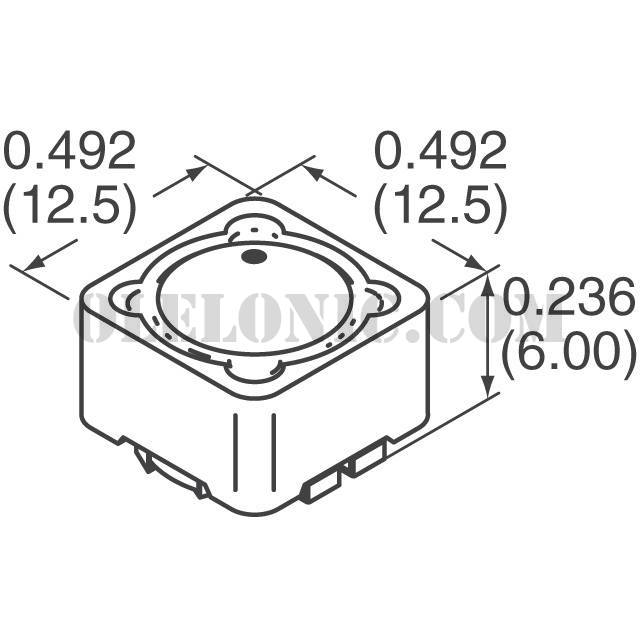

Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.236" (6.00mm)
