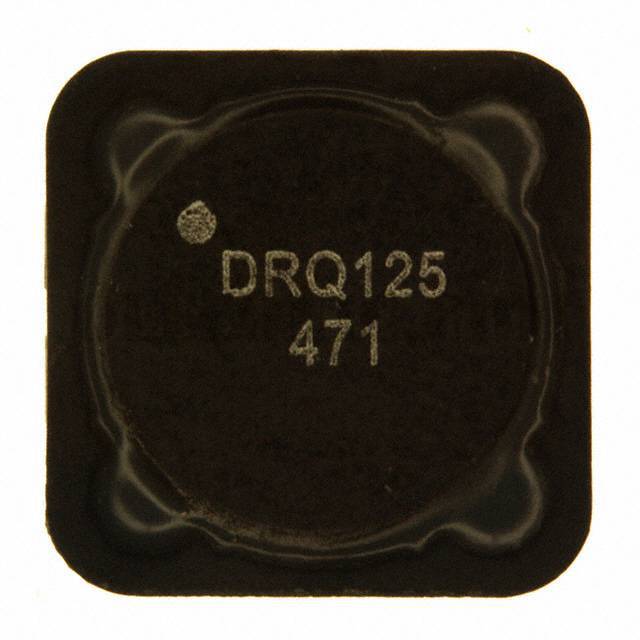

DRQ125-471-R

Part NumberDRQ125-471-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 473.1UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 1.892mH Inductance - Connected in Series 473.1µH Inductance - Connected in Parallel 718mOhm DC Resistance (DCR) - Parallel 870mA Nonstandard

To learn about the specification of DRQ125-471-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ125-471-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ125-471-R.
We are offering DRQ125-471-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ125-471-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

DRQ Series

Standard Package

600

Manufacturer

Eaton - Electronics Division

Series

DRQ

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

473.1µH

Inductance - Connected In Series

1.892mH

Tolerance

±20%

Current Rating - Parallel

870mA

Current Rating - Series

434mA

Current Saturation - Parallel

1.02A

Current Saturation - Series

510mA

DC Resistance (DCR) - Parallel

718mOhm

DC Resistance (DCR) - Series

2.87Ohm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.492" L x 0.492" W (12.50mm x 12.50mm)

Height

0.236" (6.00mm)
