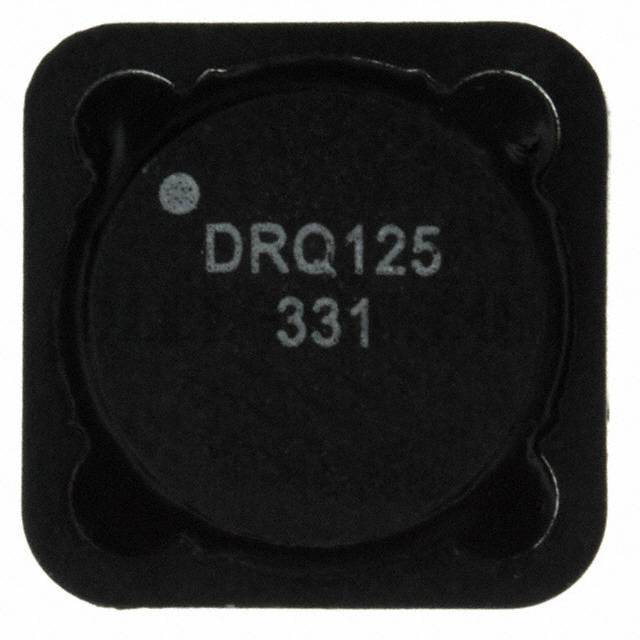

DRQ125-331-R

Part NumberDRQ125-331-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 332.6UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 1.33mH Inductance - Connected in Series 332.6µH Inductance - Connected in Parallel 482mOhm DC Resistance (DCR) - Parallel 1.06A Nonstandard

To learn about the specification of DRQ125-331-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ125-331-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ125-331-R.
We are offering DRQ125-331-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ125-331-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

DRQ Series

Standard Package

600

Manufacturer

Eaton - Electronics Division

Series

DRQ

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

332.6µH

Inductance - Connected In Series

1.33mH

Tolerance

±20%

Current Rating - Parallel

1.06A

Current Rating - Series

530mA

Current Saturation - Parallel

1.22A

Current Saturation - Series

610mA

DC Resistance (DCR) - Parallel

482mOhm

DC Resistance (DCR) - Series

1.93Ohm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.492" L x 0.492" W (12.50mm x 12.50mm)

Height

0.236" (6.00mm)
