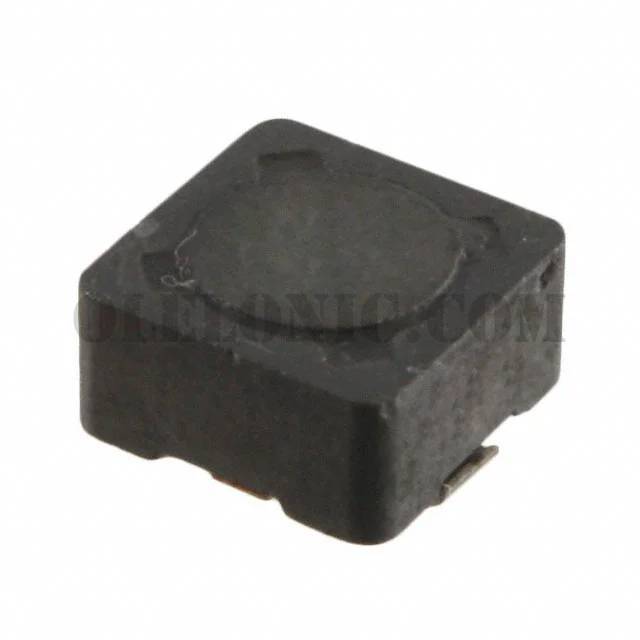

DR74-150-R


DR74-150-R

Part NumberDR74-150-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DR74-150-R - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1100
ManufacturerEaton - Electronics Division
SeriesDR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±20%
Current Rating (Amps)2.11A
Current - Saturation2.48A
ShieldingShielded
DC Resistance (DCR)63.7mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max)0.171" (4.35mm)
