Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	DR Series Datasheet
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	DR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	15µH
Tolerance	±20%
Current Rating (Amps)	5.03A
Current - Saturation	9.66A
Shielding	Shielded
DC Resistance (DCR)	24.7mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.315" (8.00mm)

DR125-101-R	Eaton - Electronics Division, 100µH Shielded Wirewound Inductor 1.78A 170mOhm Nonstandard, DR	View
DR127-102-R	Eaton - Electronics Division, 1mH Shielded Wirewound Inductor 610mA 1.66Ohm Nonstandard, DR	View
DR127-101-R	Eaton - Electronics Division, 100µH Shielded Wirewound Inductor 1.96A 163mOhm Nonstandard, DR	View
DR74-151-R	Eaton - Electronics Division, 150µH Shielded Wirewound Inductor 690mA 591mOhm Nonstandard, DR	View
DR125-4R7-R	Eaton - Electronics Division, 4.7µH Shielded Wirewound Inductor 7.18A 10.5mOhm Nonstandard, DR	View
DR125-101-R	Eaton - Electronics Division, 100µH Shielded Wirewound Inductor 1.78A 170mOhm Nonstandard, DR	View
DR74-150-R	Eaton - Electronics Division, 15µH Shielded Wirewound Inductor 2.11A 63.7mOhm Nonstandard, DR	View
DR73-100-R	Eaton - Electronics Division, 10µH Shielded Wirewound Inductor 2.08A 65.6mOhm Nonstandard, DR	View
DR74-1R5-R	Eaton - Electronics Division, 1.5µH Shielded Wirewound Inductor 4.94A 11.8mOhm Nonstandard, DR	View
DR127-681-R	Eaton - Electronics Division, 680µH Shielded Wirewound Inductor 760mA 1.08Ohm Nonstandard, DR	View
DR73-220-R	Eaton - Electronics Division, 22µH Shielded Wirewound Inductor 1.62A 107mOhm Nonstandard, DR	View
DR73-6R8-R	Eaton - Electronics Division, 6.8µH Shielded Wirewound Inductor 2.55A 43.5mOhm Nonstandard, DR	View

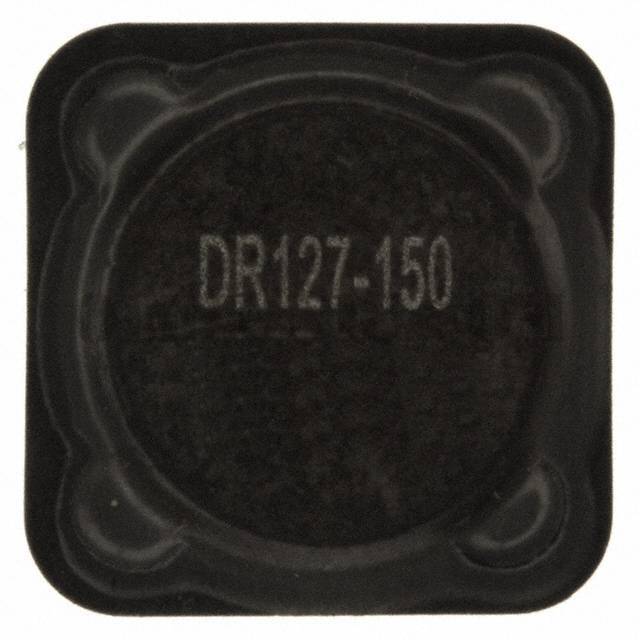

DR127-150-R
