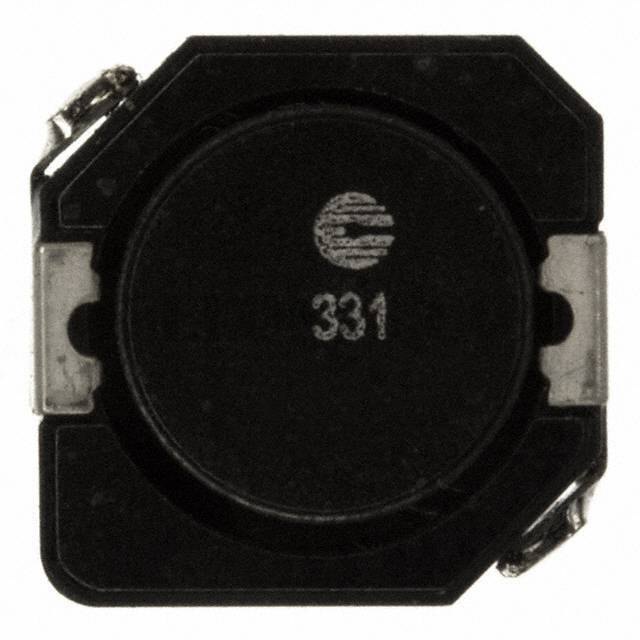

DR1040-331-R

Part NumberDR1040-331-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 330UH 520MA 1.09 OHM

DatasheetDR1040 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description330µH Shielded Wirewound Inductor 520mA 1.09Ohm Max Nonstandard

To learn about the specification of DR1040-331-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DR1040-331-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DR1040-331-R.
We are offering DR1040-331-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DR1040-331-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

DR1040 Series

Standard Package

850

Manufacturer

Eaton - Electronics Division

Series

DR1040

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

330µH

Tolerance

±30%

Current Rating (Amps)

520mA

Current - Saturation

700mA

Shielding

Shielded

DC Resistance (DCR)

1.09Ohm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.413" L x 0.406" W (10.50mm x 10.30mm)

Height - Seated (Max)

0.157" (4.00mm)
