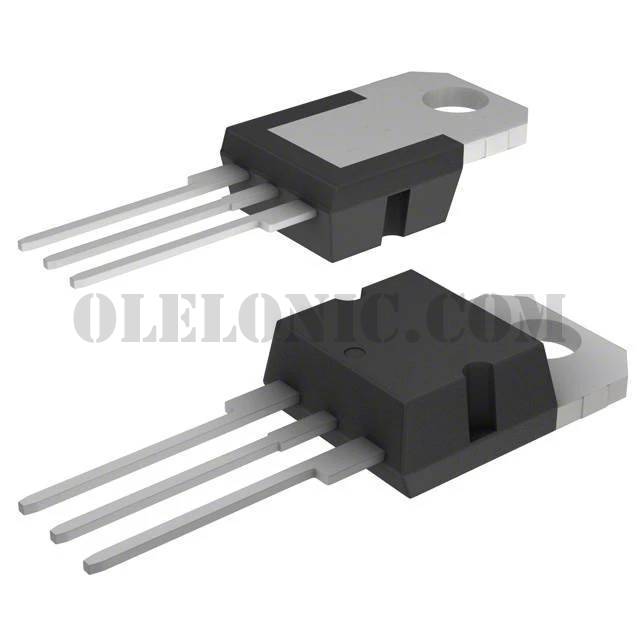

DN2535N5-G

DN2535N5-G

Part NumberDN2535N5-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 350V 500MA TO220-3

DatasheetDN2535

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 350V 500mA (Tj) 15W (Tc) Through Hole TO-220-3

To learn about the specification of DN2535N5-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DN2535N5-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DN2535N5-G.
We are offering DN2535N5-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DN2535N5-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DN2535
Standard Package	50
Manufacturer	Microchip Technology
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	350V
Current - Continuous Drain (Id) @ 25°C	500mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	25Ohm @ 120mA, 0V
Vgs(th) (Max) @ Id	-
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 25V
FET Feature	Depletion Mode
Power Dissipation (Max)	15W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
