DMT3006LDK-7

DMT3006LDK-7

Part NumberDMT3006LDK-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 30V 17.1A VDFN30308

DatasheetDMT3006LDK

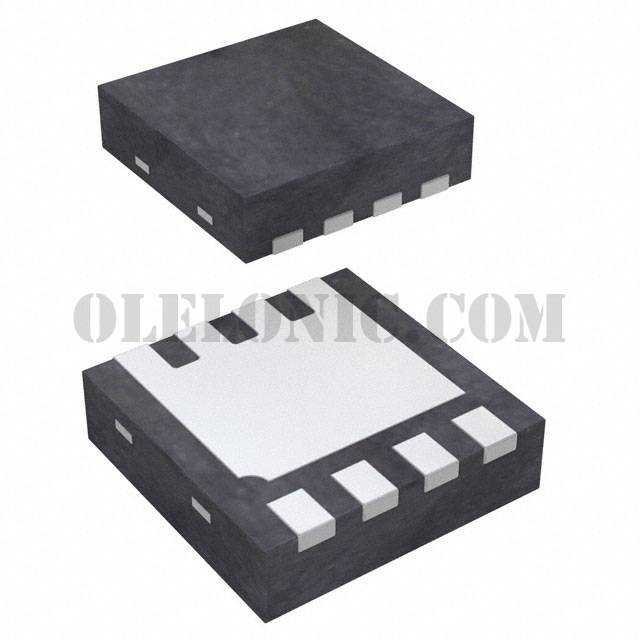

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 17.1A (Ta), 46.2A (Tc) 1.1W (Ta) Surface Mount V-DFN3030-8

To learn about the specification of DMT3006LDK-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMT3006LDK-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMT3006LDK-7.
We are offering DMT3006LDK-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMT3006LDK-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMT3006LDK
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	17.1A (Ta), 46.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1320pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	V-DFN3030-8
Package / Case	8-PowerWDFN
