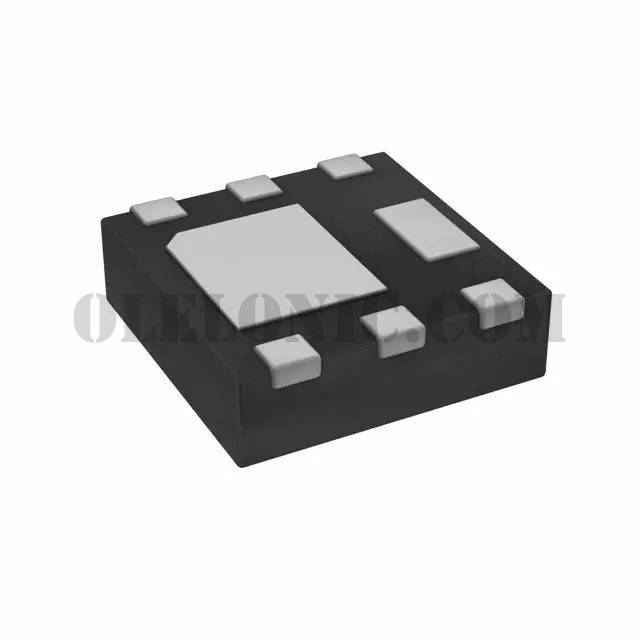

DMT2004UFDF-7

DMT2004UFDF-7

Part NumberDMT2004UFDF-7

ManufacturerDiodes Incorporated

DescriptionMOSFET NCH 24V 14.1A UDFN2020

DatasheetDMT2004UFDF

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 24V 14.1A (Ta) 800mW (Ta), 12.5W (Tc) Surface Mount U-DFN2020-6 (Type F)

To learn about the specification of DMT2004UFDF-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMT2004UFDF-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMT2004UFDF-7.
We are offering DMT2004UFDF-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMT2004UFDF-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMT2004UFDF
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	14.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	1.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53.7nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1683pF @ 15V
FET Feature	-
Power Dissipation (Max)	800mW (Ta), 12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type F)
Package / Case	6-UDFN Exposed Pad
