DMP32D9UFZ-7B

DMP32D9UFZ-7B

Part NumberDMP32D9UFZ-7B

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 30V 0.2A X2-DFN0606

DatasheetDMP32D9UFZ

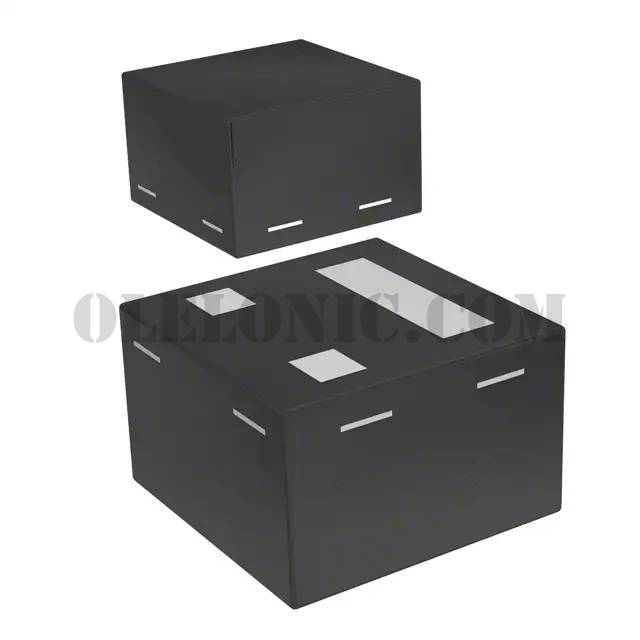

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 200mA (Ta) 390mW (Ta) Surface Mount X2-DFN0606-3

To learn about the specification of DMP32D9UFZ-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP32D9UFZ-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP32D9UFZ-7B.
We are offering DMP32D9UFZ-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP32D9UFZ-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP32D9UFZ
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 10V
Rds On (Max) @ Id, Vgs	5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.35nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	22.5pF @ 15V
FET Feature	-
Power Dissipation (Max)	390mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN0606-3
Package / Case	3-XFDFN
