Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP1200UFR4
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.8nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	514pF @ 5V
FET Feature	-
Power Dissipation (Max)	480mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

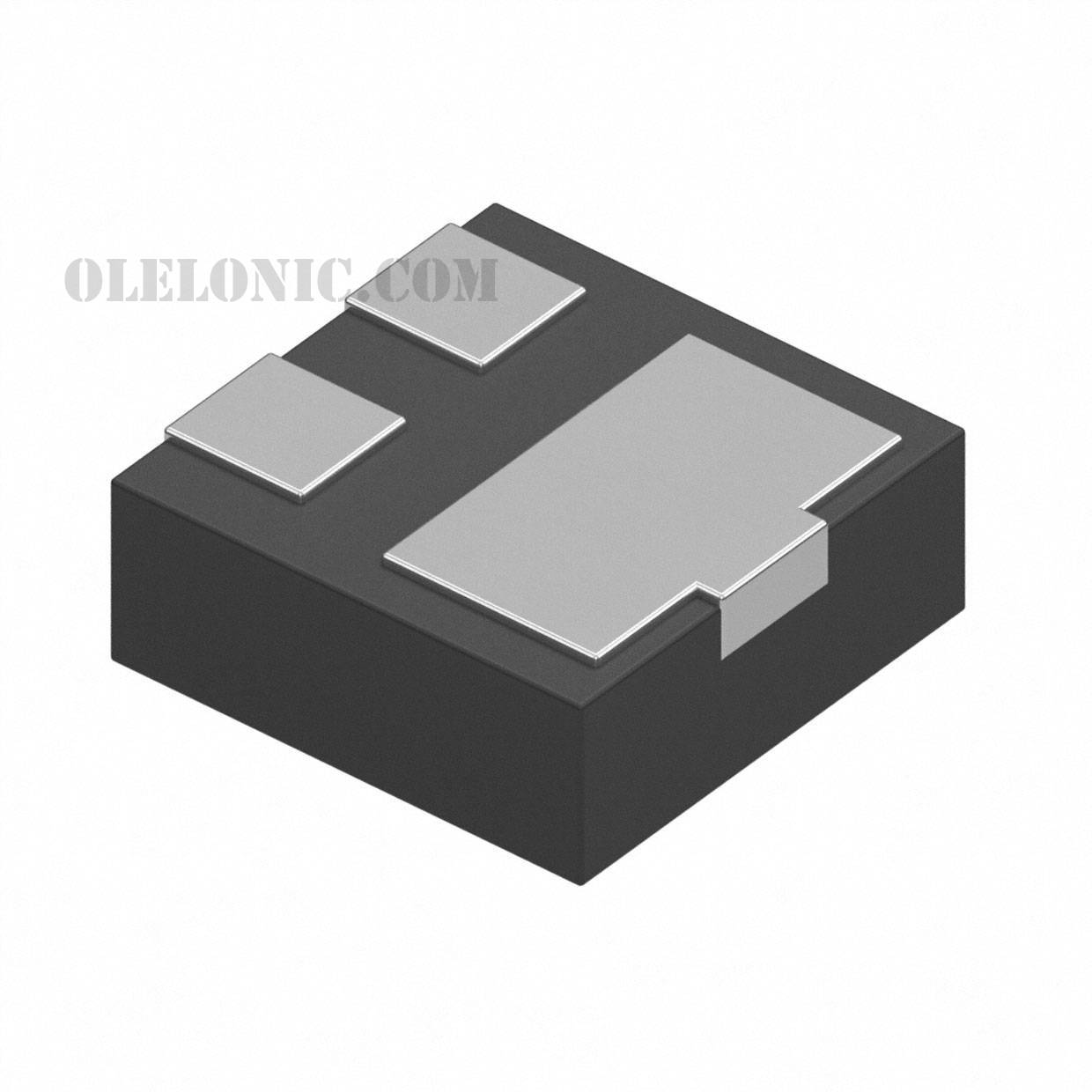

Supplier Device Package	X2-DFN1010-3
Package / Case	3-XFDFN
