DMP1100UCB4-7

DMP1100UCB4-7

Part NumberDMP1100UCB4-7

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CHA 12V 2.5A WLB0808

DatasheetDMP1100UCB4

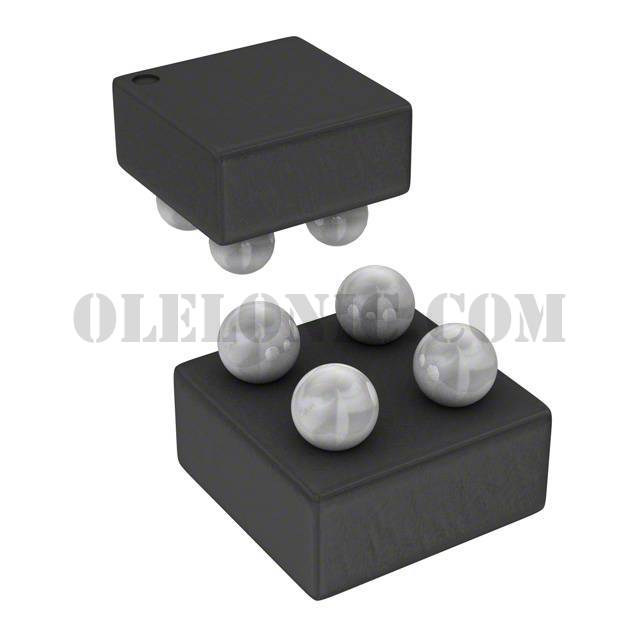

Package / Case4-UFBGA, WLBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 2.5A (Ta) 670mW (Ta) Surface Mount X2-WLB0808-4

To learn about the specification of DMP1100UCB4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP1100UCB4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP1100UCB4-7.
We are offering DMP1100UCB4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP1100UCB4-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP1100UCB4
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.3V, 4.5V
Rds On (Max) @ Id, Vgs	83mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	820pF @ 6V
FET Feature	-
Power Dissipation (Max)	670mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-WLB0808-4
Package / Case	4-UFBGA, WLBGA
