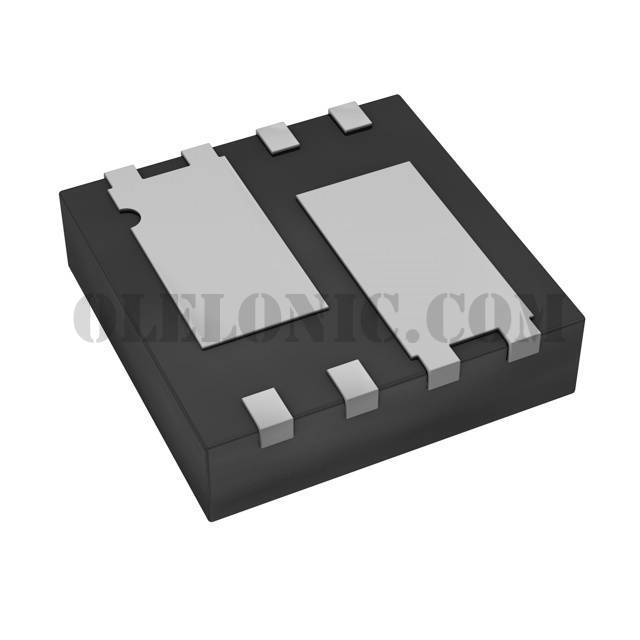

DMN3016LDN-7

Part NumberDMN3016LDN-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 30V 7.3A 8VDFN

DatasheetDMN3016LDN

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 7.3A 1.1W Surface Mount V-DFN3030-8 (Type J)

To learn about the specification of DMN3016LDN-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN3016LDN-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN3016LDN-7.
We are offering DMN3016LDN-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN3016LDN-7 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

DMN3016LDN

Standard Package

Manufacturer

Diodes Incorporated

Series

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

FET Type

2 N-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

7.3A

Rds On (Max) @ Id, Vgs

20mOhm @ 11A, 10V

Vgs(th) (Max) @ Id

2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

25.1nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

1415pF @ 15V

Power - Max

1.1W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerWDFN

Supplier Device Package

V-DFN3030-8 (Type J)
