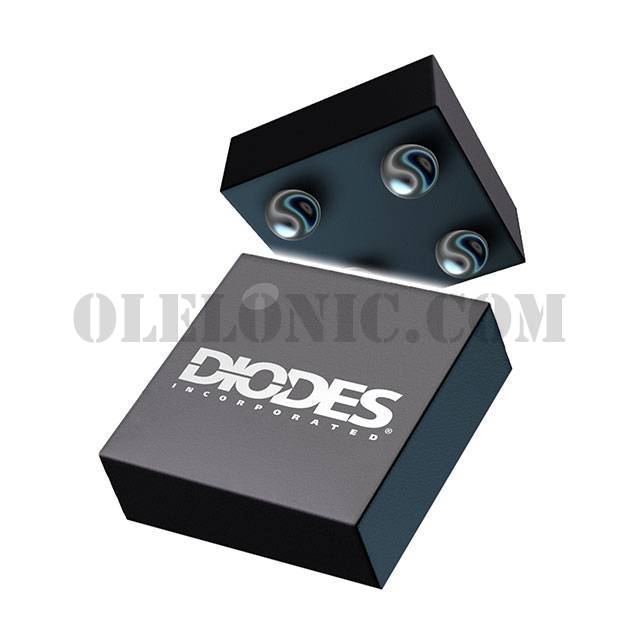

DMN2080UCB4-7

Part NumberDMN2080UCB4-7

ManufacturerDiodes Incorporated

DescriptionMOSFET BVDSS: 8V24V X2-WLB0808-

DatasheetDMN2080UCB4

Package / Case4-XFBGA, WLBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 3A (Ta) 710mW Surface Mount X2-WLB0606-4

To learn about the specification of DMN2080UCB4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2080UCB4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2080UCB4-7.
We are offering DMN2080UCB4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2080UCB4-7 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

DMN2080UCB4

Standard Package

3000

Manufacturer

Diodes Incorporated

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

3A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 4.5V

Rds On (Max) @ Id, Vgs

56mOhm @ 1A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

7.4nC @ 4.5V

Vgs (Max)

±8V

Input Capacitance (Ciss) (Max) @ Vds

540pF @ 10V

FET Feature

Power Dissipation (Max)

710mW

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

X2-WLB0606-4

Package / Case

4-XFBGA, WLBGA
