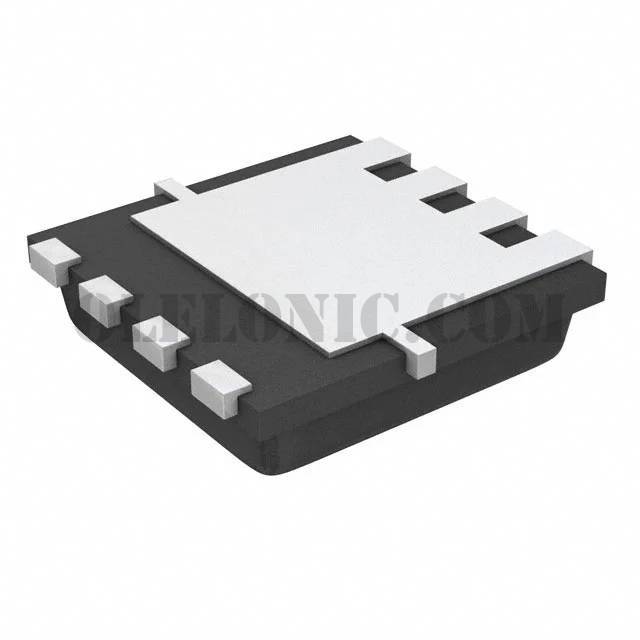

DMN1004UFV-7

DMN1004UFV-7

Part NumberDMN1004UFV-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 12V 70A POWERDI3333

DatasheetDMN1004UFV

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 70A (Tc) 1.9W (Ta) Surface Mount PowerDI3333-8

To learn about the specification of DMN1004UFV-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1004UFV-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1004UFV-7.
We are offering DMN1004UFV-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1004UFV-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN1004UFV
Standard Package	2000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47nC @ 8V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2385pF @ 6V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8
Package / Case	8-PowerVDFN
