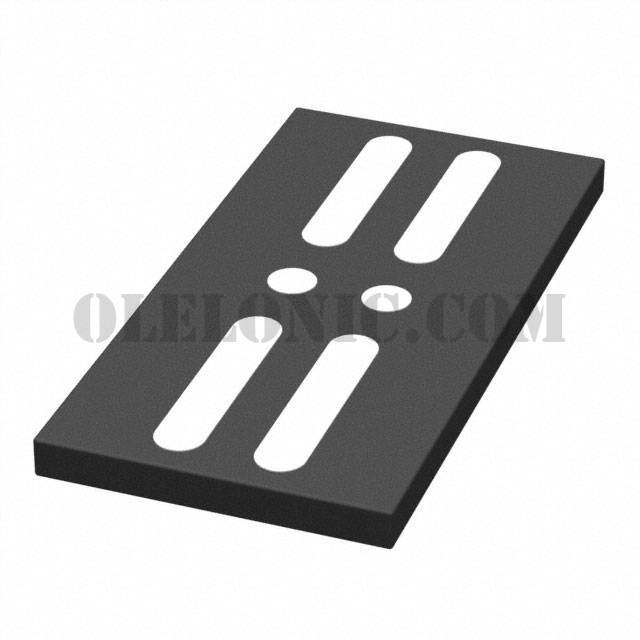

DMN1003UCA6-7

Part NumberDMN1003UCA6-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2 N-CHANNEL X3-DSN3518-6

DatasheetDMN1003UCA6

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 2.67W Surface Mount X3-DSN3518-6

To learn about the specification of DMN1003UCA6-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1003UCA6-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1003UCA6-7.
We are offering DMN1003UCA6-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1003UCA6-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN1003UCA6
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	56.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	3315pF @ 6V
Power - Max	2.67W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Supplier Device Package	X3-DSN3518-6
