DMHC10H170SFJ-13

Part NumberDMHC10H170SFJ-13

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N/2P-CH 100V DFN5045-12

DatasheetDMHC10H170SFJ

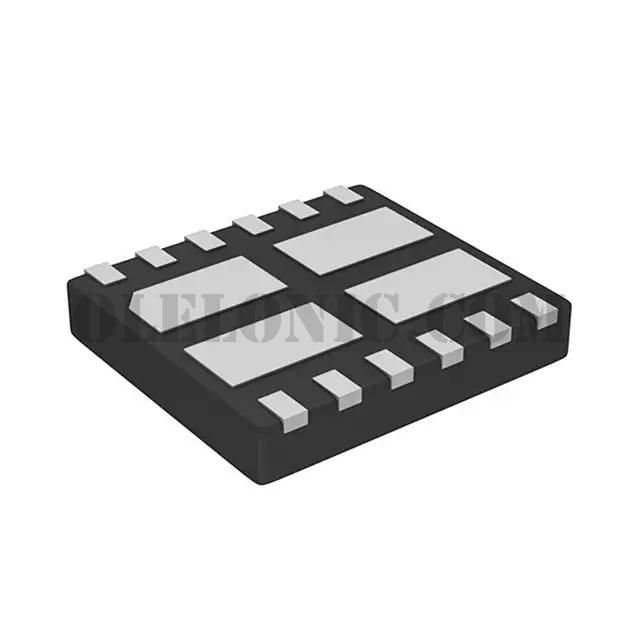

Package / Case12-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N and 2 P-Channel (H-Bridge) 100V 2.9A, 2.3A 2.1W Surface Mount V-DFN5045-12

To learn about the specification of DMHC10H170SFJ-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMHC10H170SFJ-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMHC10H170SFJ-13.
We are offering DMHC10H170SFJ-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMHC10H170SFJ-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMHC10H170SFJ
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N and 2 P-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	2.9A, 2.3A
Rds On (Max) @ Id, Vgs	160mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1167pF @ 25V
Power - Max	2.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-VDFN Exposed Pad
Supplier Device Package	V-DFN5045-12
