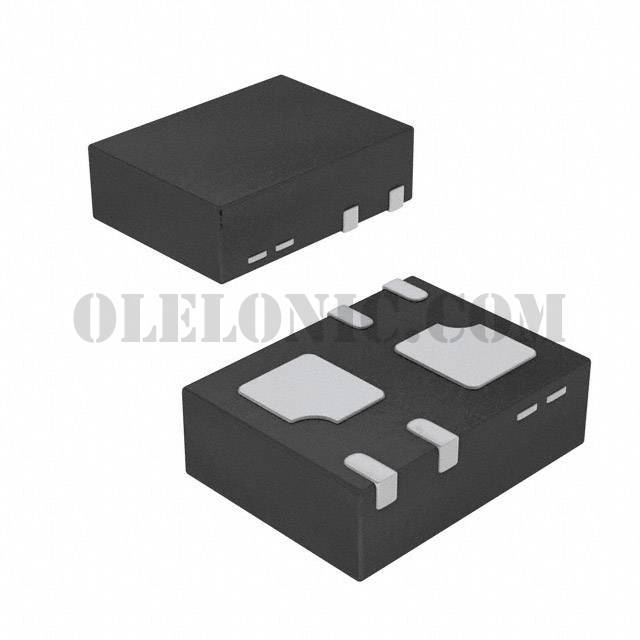

DMC2004LPK-7

DMC2004LPK-7

Part NumberDMC2004LPK-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N/P-CH 20V 6-DFN

DatasheetDMC2004LPK

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 750mA, 600mA 500mW Surface Mount X1-DFN1612-6

To learn about the specification of DMC2004LPK-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC2004LPK-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC2004LPK-7.
We are offering DMC2004LPK-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC2004LPK-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMC2004LPK
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	750mA, 600mA
Rds On (Max) @ Id, Vgs	550mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	150pF @ 16V
Power - Max	500mW
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Supplier Device Package	X1-DFN1612-6
