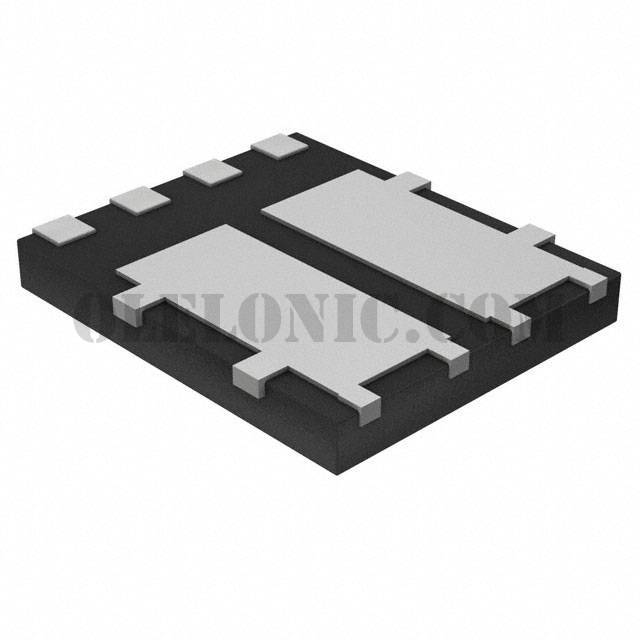

DMC1015UPD-13

Part NumberDMC1015UPD-13

ManufacturerDiodes Incorporated

DescriptionMOSFET 8V 24V POWERDI5060-8

DatasheetDMC1015UPD

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 12V 9.5A, 6.9A 2.3W Surface Mount PowerDI5060-8

To learn about the specification of DMC1015UPD-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC1015UPD-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC1015UPD-13.
We are offering DMC1015UPD-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC1015UPD-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMC1015UPD
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	9.5A, 6.9A
Rds On (Max) @ Id, Vgs	17mOhm @ 11.8A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1495pF @ 6V
Power - Max	2.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	PowerDI5060-8
