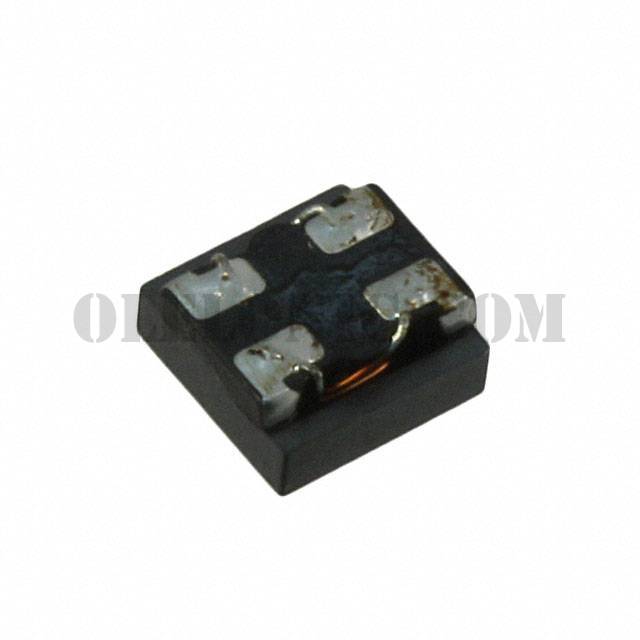

DLW5BTN102SQ2L

Part NumberDLW5BTN102SQ2L

ManufacturerMurata Electronics North America

DescriptionCMC 2A 2LN 1 KOHM SMD

DatasheetDLW5BT Series (2020 Size)

Package / CaseHorizontal, 4 J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 1 kOhms @ 100MHz 2A DCR 24mOhm (Typ)

To learn about the specification of DLW5BTN102SQ2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLW5BTN102SQ2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLW5BTN102SQ2L.
We are offering DLW5BTN102SQ2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLW5BTN102SQ2L - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

DLW5BT Series (2020 Size)

Standard Package

Manufacturer

Murata Electronics North America

Series

DLW5B

Packaging

Cut Tape (CT)

Part Status

Obsolete

Filter Type

Power, Signal Line

Number of Lines

Impedance @ Frequency

1 kOhms @ 100MHz

Current Rating (Max)

DC Resistance (DCR) (Max)

24mOhm (Typ)

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.197" L x 0.197" W (5.00mm x 5.00mm)

Height (Max)

0.098" (2.50mm)

Package / Case

Horizontal, 4 J-Lead
