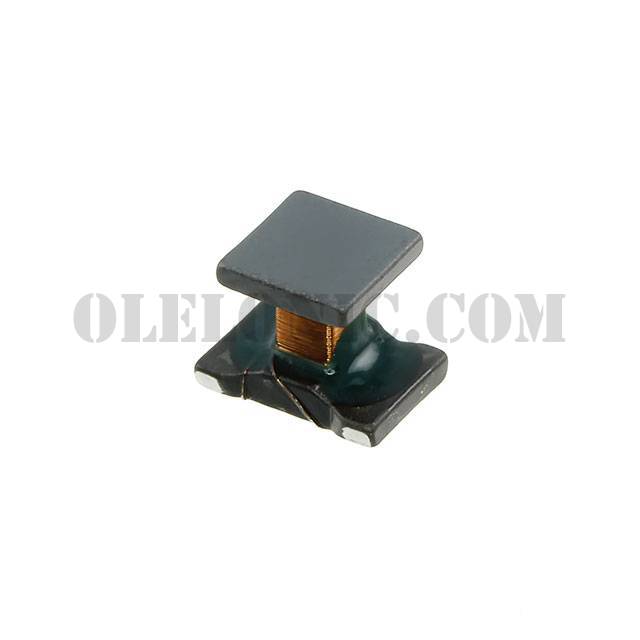

DLW5AHN402SQ2L

Part NumberDLW5AHN402SQ2L

ManufacturerMurata Electronics North America

DescriptionCMC 200MA 2LN 4 KOHM SMD

DatasheetDLW5AHN402SQ2x Spec

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 4 kOhms @ 100MHz 200mA DCR 3Ohm

To learn about the specification of DLW5AHN402SQ2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLW5AHN402SQ2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLW5AHN402SQ2L.
We are offering DLW5AHN402SQ2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLW5AHN402SQ2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLW5AHN402SQ2x Spec
Standard Package	400
Manufacturer	Murata Electronics North America
Series	DLW5A
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Power, Signal Line
Number of Lines	2
Impedance @ Frequency	4 kOhms @ 100MHz
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	3Ohm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-25°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.197" L x 0.142" W (5.00mm x 3.60mm)
Height (Max)	0.169" (4.30mm)
Package / Case	Horizontal, 4 PC Pad
