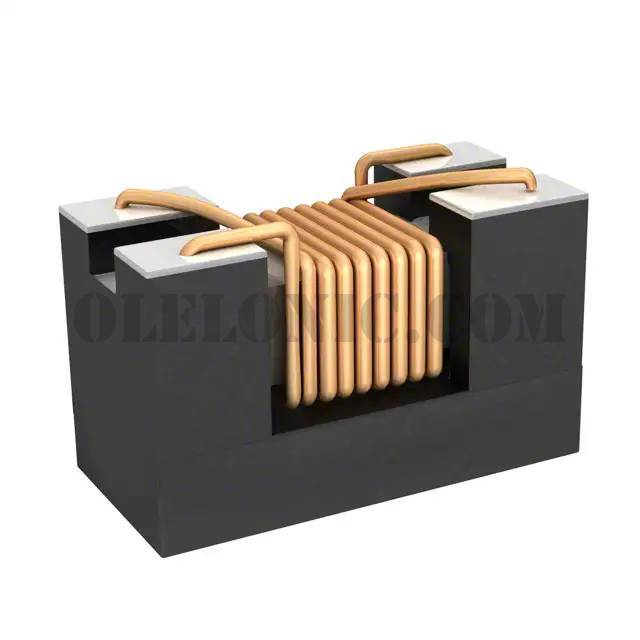

DLW31SH222SQ2L

Part NumberDLW31SH222SQ2L

ManufacturerMurata Electronics North America

DescriptionCMC 80MA 2LN 2.2KOHM SMD AECQ200

DatasheetDLW31S Series Spec

Package / Case1206 (3216 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 2.2 kOhms @ 100MHz 80mA DCR 1.92Ohm

To learn about the specification of DLW31SH222SQ2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLW31SH222SQ2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLW31SH222SQ2L.
We are offering DLW31SH222SQ2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLW31SH222SQ2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLW31S Series Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLW31
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	2.2 kOhms @ 100MHz
Current Rating (Max)	80mA
DC Resistance (DCR) (Max)	1.92Ohm
Voltage Rating - DC	32V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max)	0.083" (2.10mm)
Package / Case	1206 (3216 Metric)
