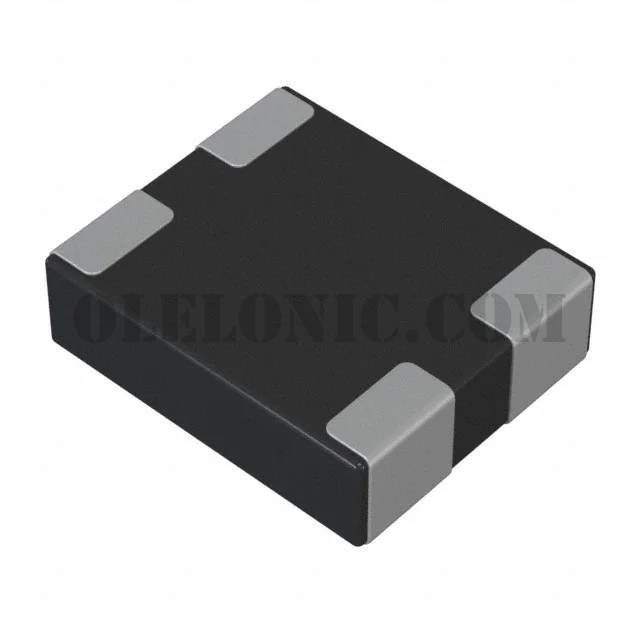

DLP11TB800UL2L

Part NumberDLP11TB800UL2L

ManufacturerMurata Electronics North America

DescriptionCMC 100MA 2LN 80 OHM SMD

DatasheetDLP11S,R,T Series

Package / Case0504 (1210 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 80 Ohms @ 100MHz 100mA DCR 1.88Ohm

To learn about the specification of DLP11TB800UL2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLP11TB800UL2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLP11TB800UL2L.
We are offering DLP11TB800UL2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLP11TB800UL2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLP11S,R,T Series
Standard Package	5000
Manufacturer	Murata Electronics North America
Series	DLP11
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	80 Ohms @ 100MHz
Current Rating (Max)	100mA
DC Resistance (DCR) (Max)	1.88Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)	0.014" (0.35mm)
Package / Case	0504 (1210 Metric), 4 Lead
