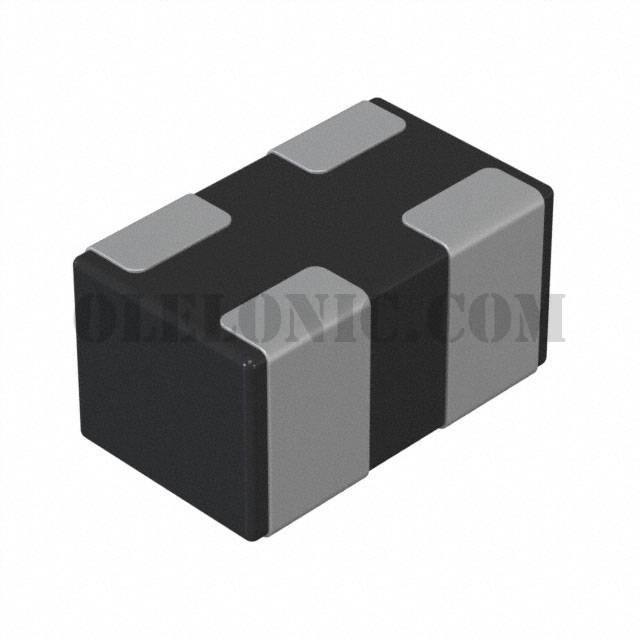

DLP0NSN121HL2L

Part NumberDLP0NSN121HL2L

ManufacturerMurata Electronics North America

DescriptionCMC 90MA 2LN 120 OHM SMD

DatasheetDLP0NSyyyyHL2y Spec

Package / Case0302 (0806 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 120 Ohms @ 100MHz 90mA DCR 4.75Ohm

To learn about the specification of DLP0NSN121HL2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLP0NSN121HL2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLP0NSN121HL2L.
We are offering DLP0NSN121HL2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLP0NSN121HL2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLP0NSyyyyHL2y Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLP0N
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	120 Ohms @ 100MHz
Current Rating (Max)	90mA
DC Resistance (DCR) (Max)	4.75Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max)	0.020" (0.50mm)
Package / Case	0302 (0806 Metric), 4 Lead
