Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DL4001-4007
Standard Package	5000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 50V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Supplier Device Package	MELF
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	DL4001

STTH806DIRG	STMicroelectronics, Diode Standard 600V 8A Through Hole TO-220AC ins,	View
VS-E5PX3012L-N3	Vishay Semiconductor Diodes Division, Diode Standard 1200V 30A Through Hole TO-247AD, FRED Pt®	View
BAS1603WE6327HTSA1	Infineon Technologies, Diode Standard 80V 250mA (DC) Surface Mount PG-SOD323-2,	View
BAS21AHT1G	ON Semiconductor, Diode Standard 250V 200mA (DC) Surface Mount SOD-323,	View
STTH112UFY	STMicroelectronics, Diode Standard 1200V 1A Surface Mount SMBflat, Automotive, AEC-Q101, ECOPACK®2	View
MUR440S V7G	Taiwan Semiconductor Corporation, Diode Standard 400V 4A Surface Mount DO-214AB (SMC),	View
VS-ETH3007-M3	Vishay Semiconductor Diodes Division, Diode Standard 650V 30A Through Hole TO-220AC, FRED Pt®	View
SE10PB-M3/84A	Vishay Semiconductor Diodes Division, Diode Standard 100V 1A Surface Mount DO-220AA (SMP), eSMP®	View
MUR260G	ON Semiconductor, Diode Standard 600V 2A Through Hole Axial, SWITCHMODE™	View
1N4004-E3/73	Vishay Semiconductor Diodes Division, Diode Standard 400V 1A Through Hole DO-204AL (DO-41),	View
CURN101-HF	Comchip Technology, Diode Standard 200V 1A Surface Mount 1206/SOD-123,	View
ACGRKM4005-HF	Comchip Technology, Diode Standard 600V 1A Surface Mount KM/SOD-123F, Automotive, AEC-Q101	View

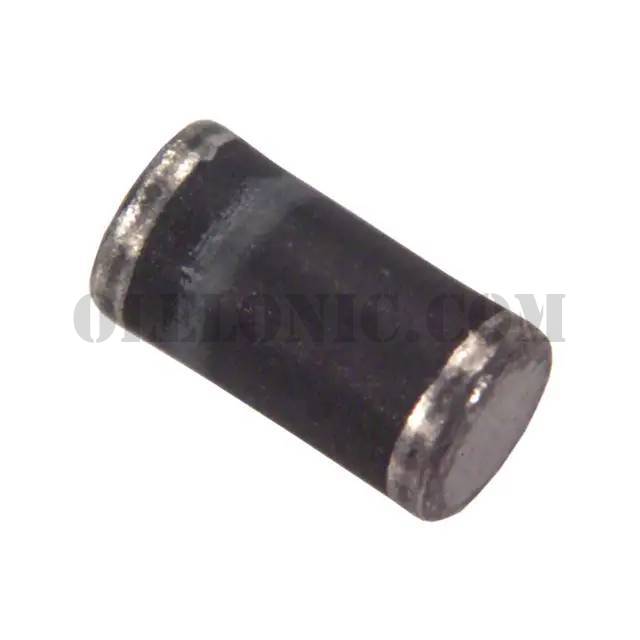

DL4001-13-F
