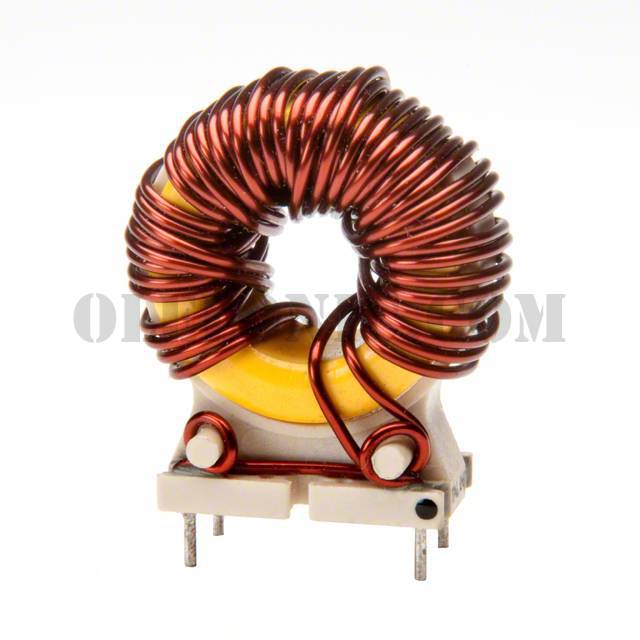

DJ-503

Part NumberDJ-503

ManufacturerAmgis, LLC

DescriptionINDUCT ARRAY 2 COIL 25UH T/H

DatasheetDJ Series

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 100µH Inductance - Connected in Series 25µH Inductance - Connected in Parallel 13mOhm Max DC Resistance (DCR) - Parallel 6A Radial

To learn about the specification of DJ-503, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DJ-503 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DJ-503.
We are offering DJ-503 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DJ-503 - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

DJ Series

Standard Package

Manufacturer

Amgis, LLC

Series

Packaging

Tray

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

25µH

Inductance - Connected In Series

100µH

Tolerance

±15%

Current Rating - Parallel

Current Rating - Series

DC Resistance (DCR) - Parallel

13mOhm Max

DC Resistance (DCR) - Series

52mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Through Hole

Package / Case

Radial

Size / Dimension

1.043" L x 0.531" W (26.50mm x 13.50mm)

Height

1.161" (29.50mm)
