Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S2 - DF10S2
Standard Package	1500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 2A
Current - Reverse Leakage @ Vr	3µA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SDIP

Z4GP210L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS(Z4),	View
CBRHD-06 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-HD DIP,	View
DF1510S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
DFL1510S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
HDS10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount HDS,	View
MB8S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-SOIC,	View
CDBHD1100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount Mini-Dip (TO-269AA),	View
MB6FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount MBF,	View
FTB10F-15FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABF,	View
UABF1510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
MSB10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MSB,	View
ABS10A-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View

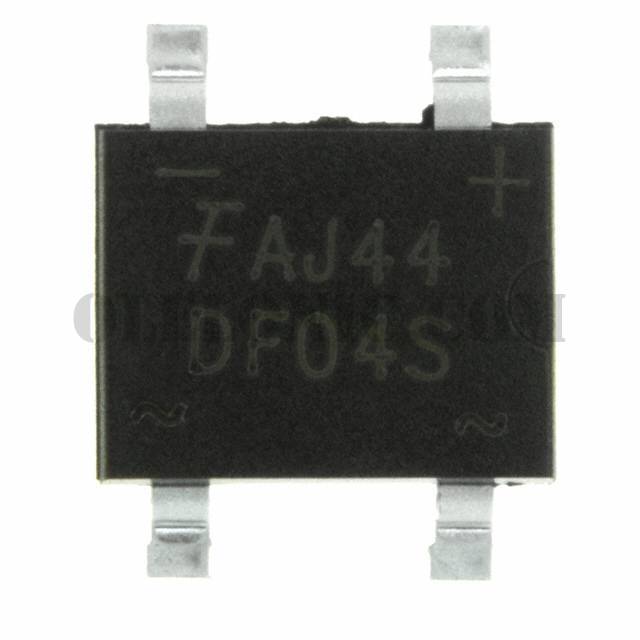

DF04S2

Part NumberDF04S2
