Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S - DF10S
Standard Package	1500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Current - Reverse Leakage @ Vr	10µA @ 200V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SDIP
Base Part Number	DF02

DBF1510U-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
DF1510S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DF-S,	View
KMB28STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 80V Surface Mount MBS,	View
DF06S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Surface Mount DF-S,	View
Z4GP206L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS(Z4),	View
YBS2207G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount YBS,	View
YBS3004G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
DBLS203G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount DBLS,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
Z4DGP408L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount Z4-D,	View
CBRHDSH1-40L TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-HD DIP,	View
DBLS105G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount DBLS,	View

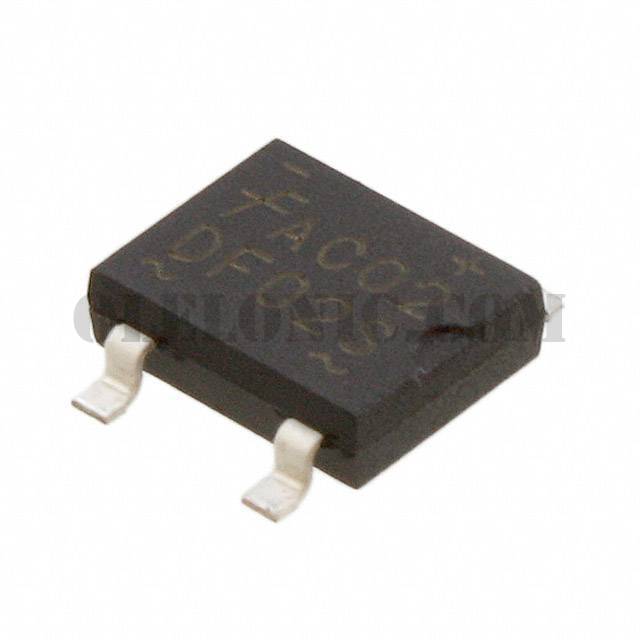

DF02S
