Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005M - DF10M
Standard Package	5000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	5µA @ 200V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Base Part Number	DF02

GBU8D-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Through Hole GBU,	View
GBU6G-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 400V Through Hole GBU,	View
DBL106G C1G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Through Hole DBL,	View
GBPC5010W-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Through Hole GBPC-W,	View
KBU4A-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Through Hole KBU,	View
DB103-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Through Hole DB-1,	View
GBU10005-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V Through Hole GBU,	View
GBU806 D2G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Through Hole GBU,	View
GBU8005	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Through Hole GBU,	View
DF02M-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V Through Hole DFM,	View
2KBP06-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Through Hole KBPL,	View
GBU2507 D2	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Through Hole GBU,	View

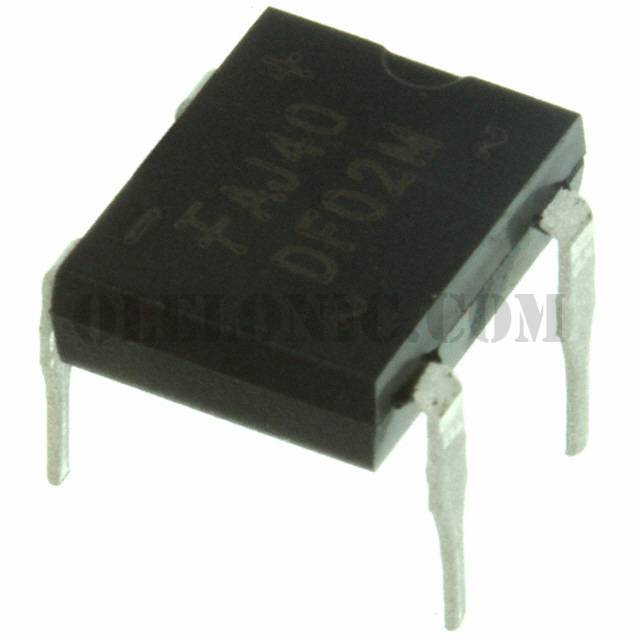

DF02M
