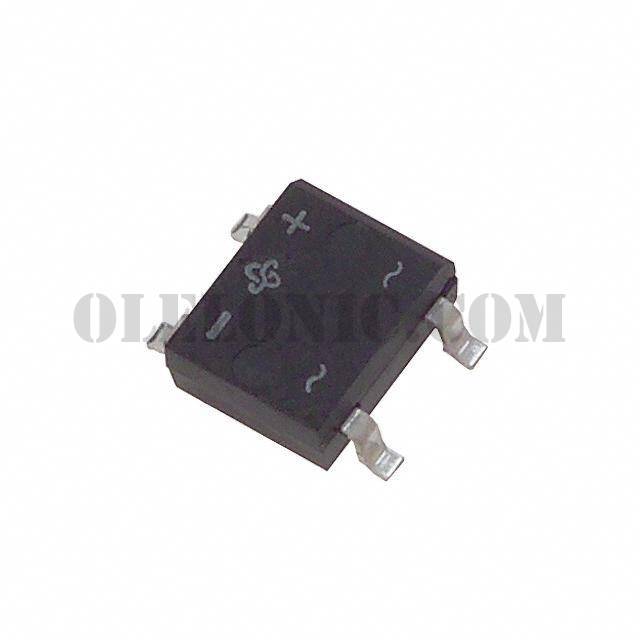

Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S - DF10S
Standard Package	1500
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	5µA @ 100V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DFS
Base Part Number	DF01
