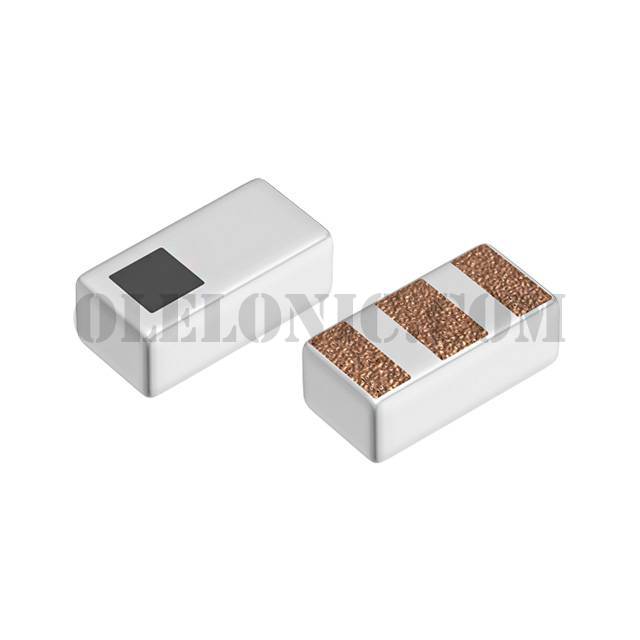

DEA162300HT-8047A1

Part NumberDEA162300HT-8047A1

ManufacturerTDK Corporation

DescriptionRF FILTER HIGH PASS 2.4GHZ 0603

DatasheetDEA162300HT-8047A1 Datasheet~

Package / Case0603 (1608 Metric), 3 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.4GHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth 0.5dB 0603 (1608 Metric), 3 PC Pad

To learn about the specification of DEA162300HT-8047A1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DEA162300HT-8047A1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DEA162300HT-8047A1.
We are offering DEA162300HT-8047A1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DEA162300HT-8047A1 - Product Attributes

Categories	Filters / RF Filters
Datasheet	DEA162300HT-8047A1 Datasheet~
Standard Package	1
Manufacturer	TDK Corporation
Series	DEA
Packaging	Cut Tape (CT)
Part Status	Active
Frequency	2.4GHz
Bandwidth	-
Filter Type	High Pass
Ripple	-
Insertion Loss	0.5dB
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric), 3 PC Pad
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max)	0.026" (0.65mm)
