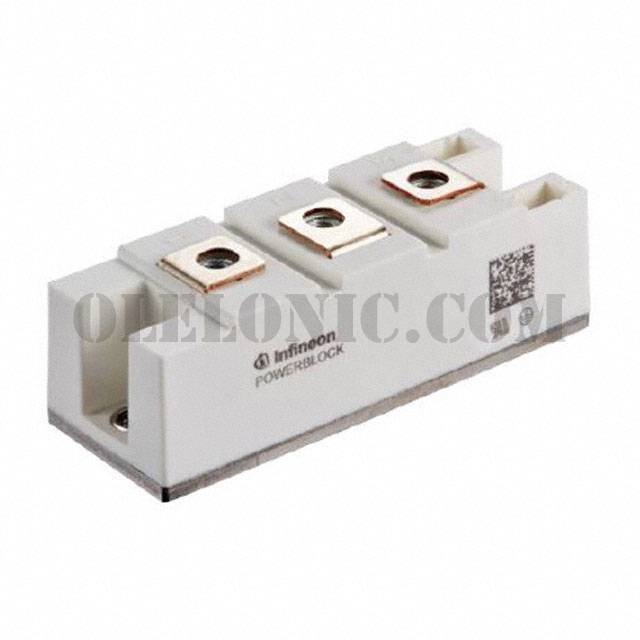

DD180N22SHPSA1

Part NumberDD180N22SHPSA1

ManufacturerInfineon Technologies

DescriptionMODULE DIODE THY PB34SB-1

DatasheetDD180N22S

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 2200V 226A Chassis Mount Module

To learn about the specification of DD180N22SHPSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DD180N22SHPSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DD180N22SHPSA1.
We are offering DD180N22SHPSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DD180N22SHPSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DD180N22S
Standard Package	8
Manufacturer	Infineon Technologies
Series	-
Packaging	Tray
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	2200V
Current - Average Rectified (Io) (per Diode)	226A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1mA @ 2200V
Operating Temperature - Junction	-40°C ~ 135°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	BG-PB34SB-1
