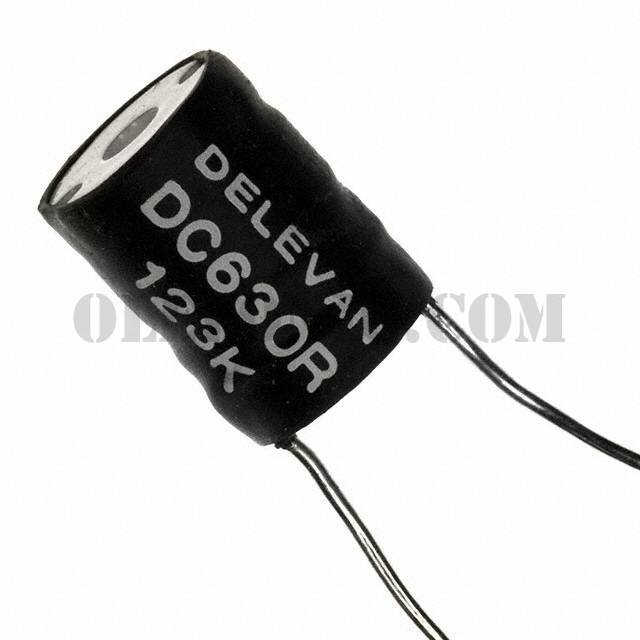

DC630R-123K

Part NumberDC630R-123K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 12UH 9.1A 11 MOHM TH

DatasheetDC630(R) Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description12µH Unshielded Wirewound Inductor 9.1A 11mOhm Max Radial, Vertical Cylinder

To learn about the specification of DC630R-123K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DC630R-123K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DC630R-123K.
We are offering DC630R-123K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DC630R-123K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

DC630(R) Series

Standard Package

100

Manufacturer

API Delevan Inc.

Series

DC630R

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

12µH

Tolerance

±10%

Current Rating (Amps)

9.1A

Current - Saturation

19.5A

Shielding

Unshielded

DC Resistance (DCR)

11mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder

Supplier Device Package

Size / Dimension

0.630" Dia (16.00mm)

Height - Seated (Max)

0.830" (21.08mm)
