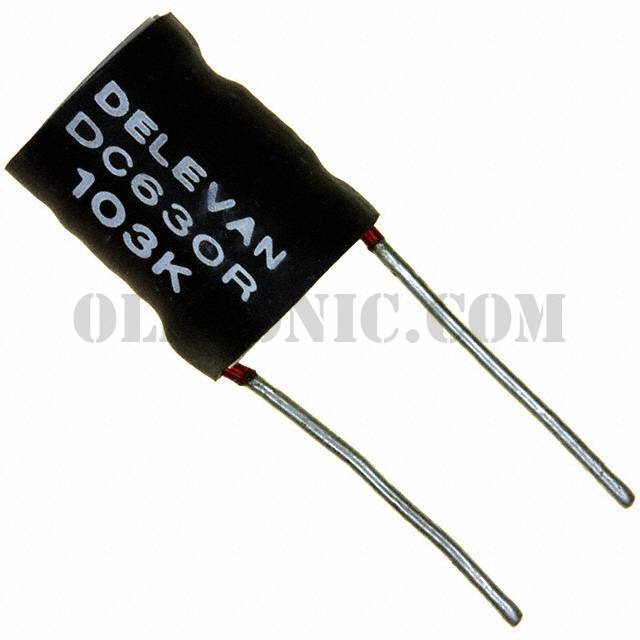

DC630R-103K

Part NumberDC630R-103K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 10UH 9.5A 10 MOHM TH

DatasheetDC630(R) Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Wirewound Inductor 9.5A 10mOhm Max Radial, Vertical Cylinder

To learn about the specification of DC630R-103K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DC630R-103K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DC630R-103K.
We are offering DC630R-103K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DC630R-103K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

DC630(R) Series

Standard Package

100

Manufacturer

API Delevan Inc.

Series

DC630R

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

10µH

Tolerance

±10%

Current Rating (Amps)

9.5A

Current - Saturation

21.5A

Shielding

Unshielded

DC Resistance (DCR)

10mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder

Supplier Device Package

Size / Dimension

0.630" Dia (16.00mm)

Height - Seated (Max)

0.830" (21.08mm)
