Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DBLS101G - DBLS107G
Standard Package	1500
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 15A
Current - Reverse Leakage @ Vr	2µA @ 100V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DBLS

DF15005S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Surface Mount DF-S,	View
MB110S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS-1,	View
DF1508S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 800V Surface Mount DF-S,	View
ABS6 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View
RDBF310-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
Z4GP208L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount ABS(Z4),	View
DF005S	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Surface Mount DF-S,	View
DBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
ABS15M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
ABS20M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
CDBHM240L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS-2,	View
RMB2S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount MBS,	View

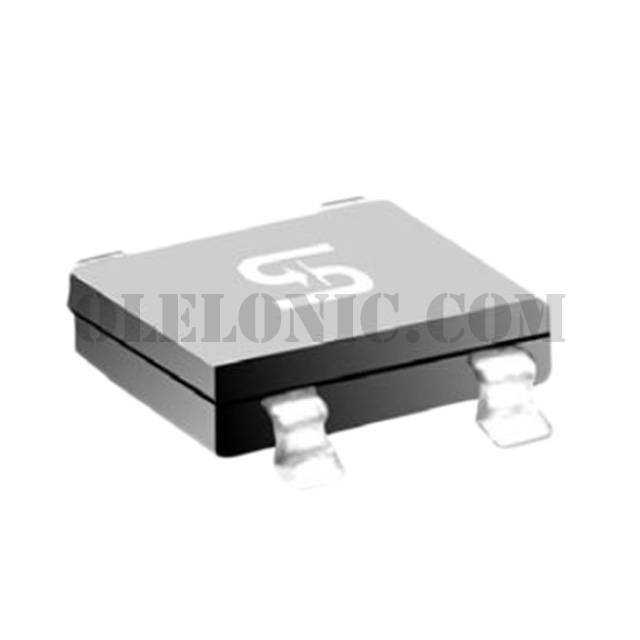

DBLS102G RDG

Part NumberDBLS102G RDG
