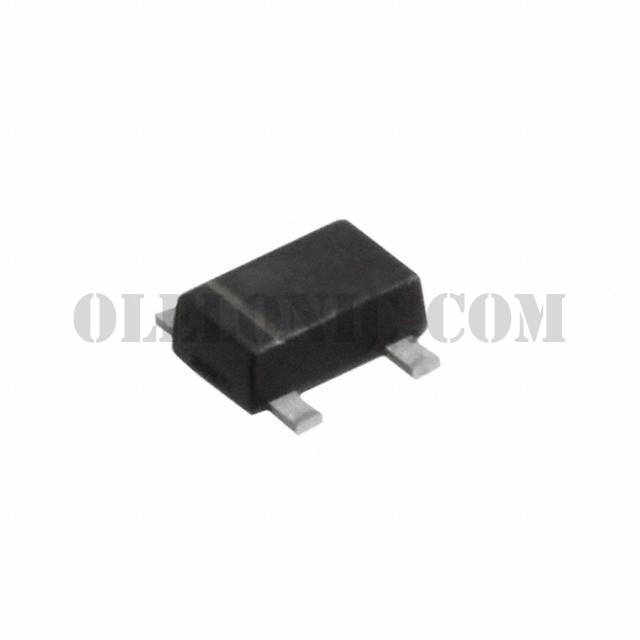

DB4J314K0R

Part NumberDB4J314K0R

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY SCHOTTKY 30V SMINI4

DatasheetDB4J314K0R

Package / Case4-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 30mA (DC) Surface Mount 4-SMD, Flat Leads

To learn about the specification of DB4J314K0R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB4J314K0R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB4J314K0R.
We are offering DB4J314K0R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB4J314K0R - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DB4J314K0R
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	30mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 30mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1ns
Current - Reverse Leakage @ Vr	300nA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads
Supplier Device Package	SMini4-F3-B
Base Part Number	DB4J314
