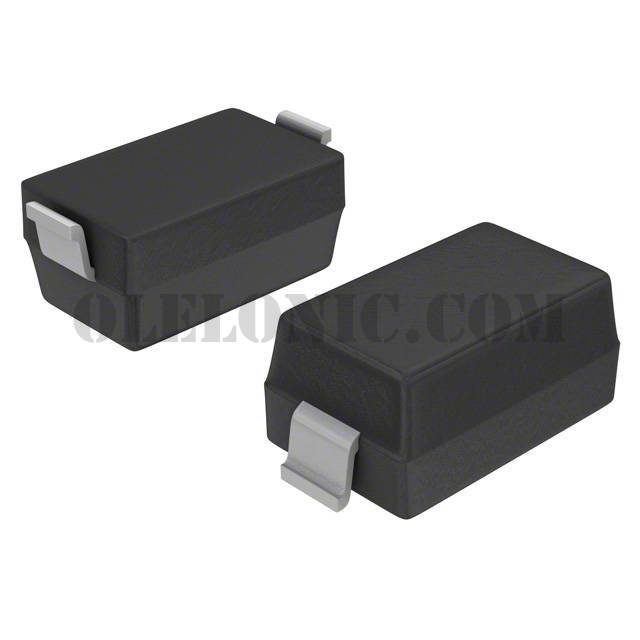

DB2X20100L

Part NumberDB2X20100L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 20V 500MA SOD123

DatasheetDB2X201

Package / CaseSOD-123

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 500mA Surface Mount SOD-123

To learn about the specification of DB2X20100L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2X20100L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2X20100L.
We are offering DB2X20100L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2X20100L - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

DB2X201

Standard Package

3000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

20V

Current - Average Rectified (Io)

500mA

Voltage - Forward (Vf) (Max) @ If

550mV @ 500mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

4.3ns

Current - Reverse Leakage @ Vr

10µA @ 10V

Capacitance @ Vr, F

12pF @ 10V, 1MHz

Mounting Type

Surface Mount

Package / Case

SOD-123

Supplier Device Package
