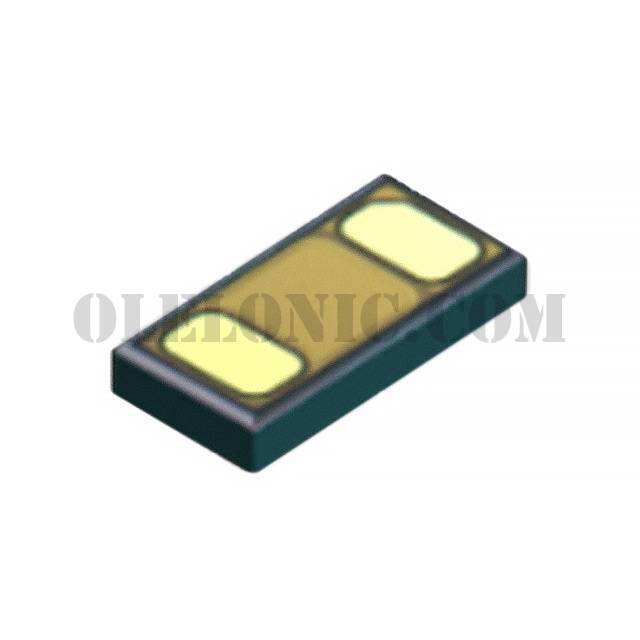

DB2L33400L1

DB2L33400L1

Part NumberDB2L33400L1

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 30V 500MA 0201

DatasheetDB2L33400L1 Datasheet

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 500mA Surface Mount 0201 (0603 Metric)

To learn about the specification of DB2L33400L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2L33400L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2L33400L1.
We are offering DB2L33400L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2L33400L1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2L33400L1 Datasheet
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	540mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3.5ns
Current - Reverse Leakage @ Vr	45µA @ 30V
Capacitance @ Vr, F	10pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Operating Temperature - Junction	150°C (Max)
