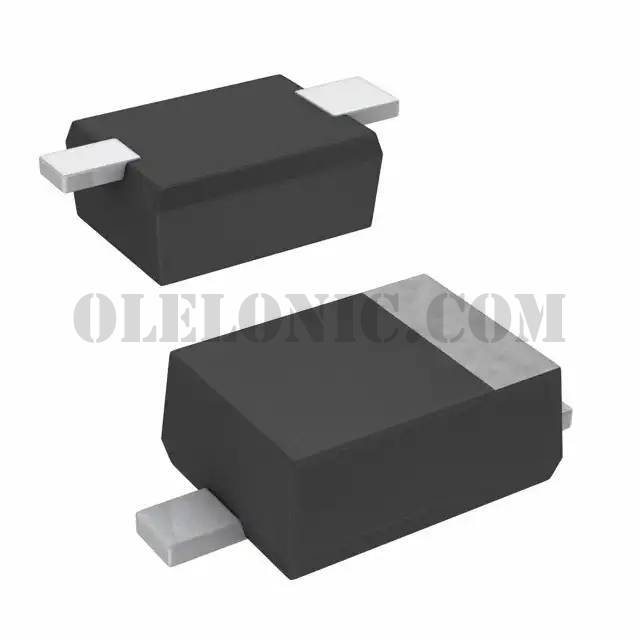

DB2J31700L

DB2J31700L

Part NumberDB2J31700L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 30V 1A SMINI2

DatasheetDB2J31700L

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount SMini2-F5-B

To learn about the specification of DB2J31700L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2J31700L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2J31700L.
We are offering DB2J31700L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2J31700L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2J31700L
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	520mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	7.8ns
Current - Reverse Leakage @ Vr	100µA @ 40V
Capacitance @ Vr, F	22pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SMini2-F5-B
Operating Temperature - Junction	125°C (Max)
Base Part Number	DB2J317
