DAP222WMFHTL

Part NumberDAP222WMFHTL

ManufacturerRohm Semiconductor

DescriptionSWITCHING DIODES (CORRESPONDS TO

DatasheetDAP222WMFH

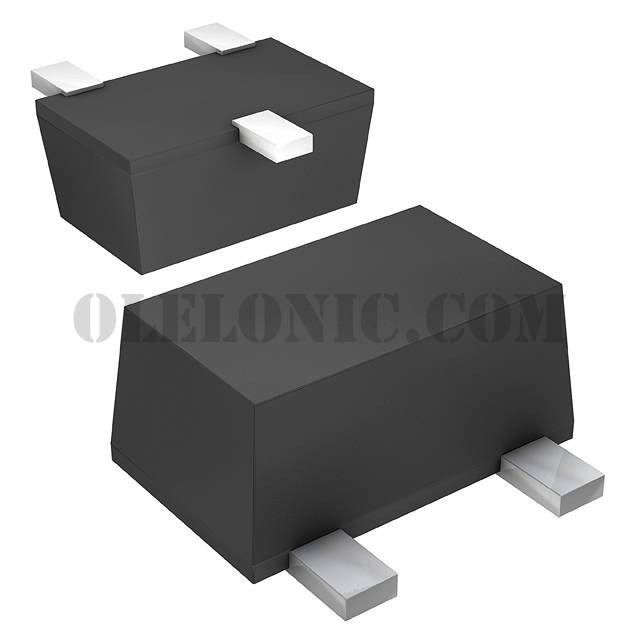

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Anode Standard 80V 100mA Surface Mount SC-89, SOT-490

To learn about the specification of DAP222WMFHTL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DAP222WMFHTL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DAP222WMFHTL.
We are offering DAP222WMFHTL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DAP222WMFHTL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DAP222WMFH
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Anode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	100nA @ 70V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	EMD3F
