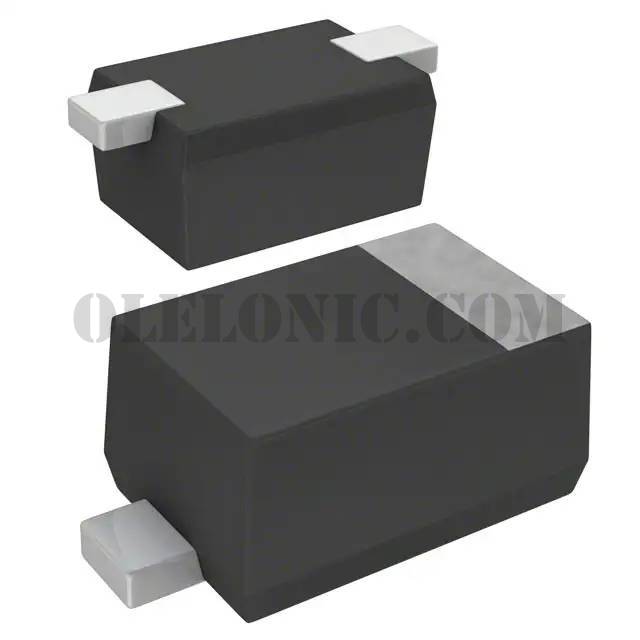

DA2S10100L


DA2S10100L

Part NumberDA2S10100L

Manufacturer

Description

Datasheet

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DA2S10100L - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerPanasonic Electronic Components
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80V
Current - Average Rectified (Io)100mA (DC)
Voltage - Forward (Vf) (Max) @ If1.2V @ 100mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)3ns
Current - Reverse Leakage @ Vr100nA @ 75V
Capacitance @ Vr, F1.2pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSSMini2-F5-B
Operating Temperature - Junction150°C (Max)
Base Part NumberDA2S101
