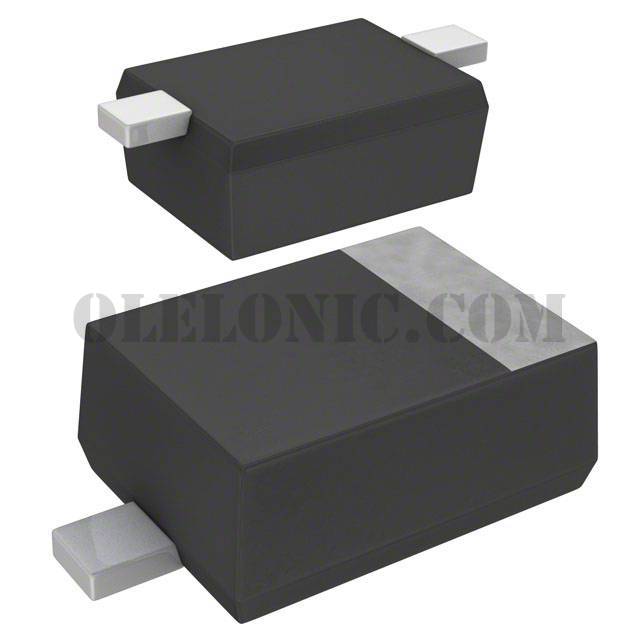

DA2JF8100L

DA2JF8100L

Part NumberDA2JF8100L

ManufacturerPanasonic Electronic Components

DescriptionDIODE GEN PURP 800V 200MA SMINI2

DatasheetDA2JF8100L

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 200mA (DC) Surface Mount SMini2-F5-B

To learn about the specification of DA2JF8100L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DA2JF8100L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DA2JF8100L.
We are offering DA2JF8100L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DA2JF8100L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DA2JF8100L
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	2.5V @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	45ns
Current - Reverse Leakage @ Vr	10µA @ 800V
Capacitance @ Vr, F	0.6pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SMini2-F5-B
Operating Temperature - Junction	-40°C ~ 150°C
Base Part Number	DA2JF81
