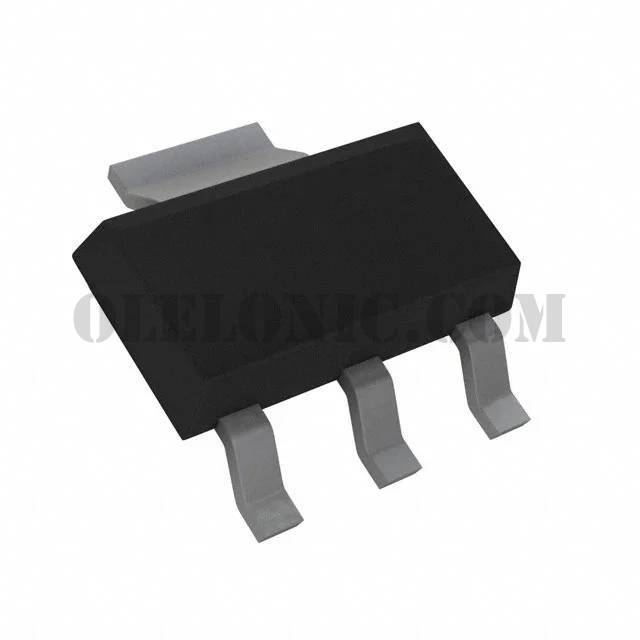

CZT955 TR

CZT955 TR

Part NumberCZT955 TR

ManufacturerCentral Semiconductor Corp

DescriptionTRANS PNP 140V 4A SOT-223

DatasheetCZT955

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 140V 4A 200MHz 3W Surface Mount SOT-223

To learn about the specification of CZT955 TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CZT955 TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CZT955 TR.
We are offering CZT955 TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CZT955 TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	CZT955
Standard Package	1000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	4A
Voltage - Collector Emitter Breakdown (Max)	140V
Vce Saturation (Max) @ Ib, Ic	360mV @ 300mA, 3A
Current - Collector Cutoff (Max)	20nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1A, 5V
Power - Max	3W
Frequency - Transition	200MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
