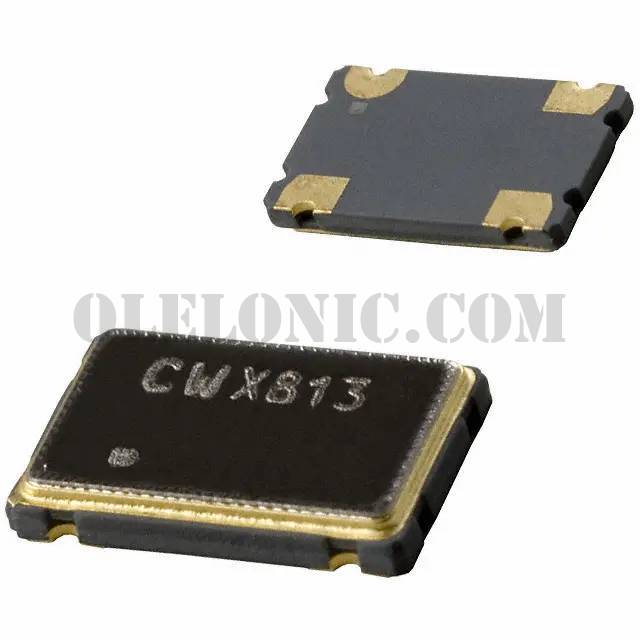

CWX813-010.0M

CWX813-010.0M

Part NumberCWX813-010.0M

ManufacturerConnor-Winfield

DescriptionXTAL OSC XO 10.0000MHZ LVCMOS

DatasheetCWX8xx Series Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead

To learn about the specification of CWX813-010.0M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CWX813-010.0M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CWX813-010.0M.
We are offering CWX813-010.0M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CWX813-010.0M - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	CWX8xx Series Datasheet
Standard Package	1
Manufacturer	Connor-Winfield
Series	CWX813
Packaging	Cut Tape (CT)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	10MHz
Function	Enable/Disable
Output	LVCMOS
Voltage - Supply	3.3V
Frequency Stability	±25ppm
Absolute Pull Range (APR)	-
Operating Temperature	-20°C ~ 70°C
Current - Supply (Max)	30mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.051" (1.30mm)
Current - Supply (Disable) (Max)	-
