Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CUS520
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	280mV @ 10mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 30V
Capacitance @ Vr, F	17pF @ 0V, 1MHz
Mounting Type	Surface Mount

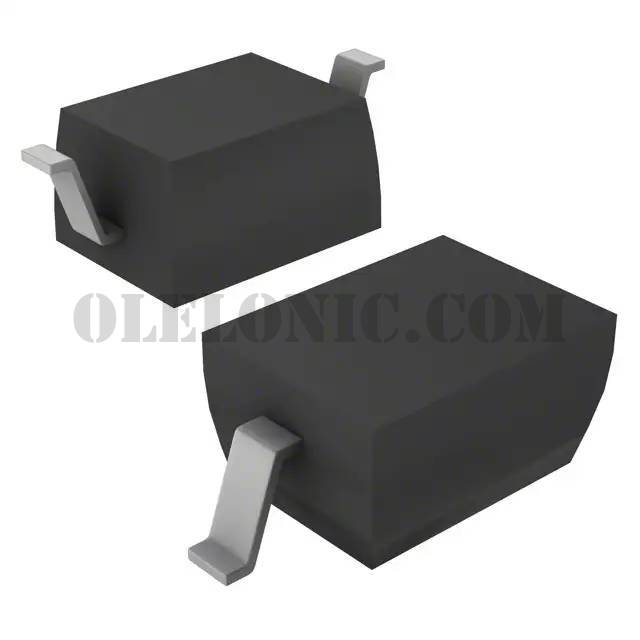

Package / Case	SC-76, SOD-323
Supplier Device Package	USC
Operating Temperature - Junction	125°C (Max)
