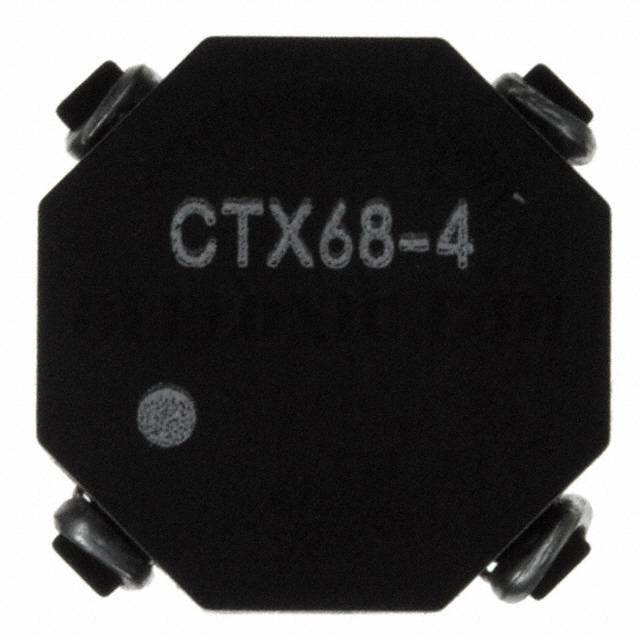

CTX68-4-R


CTX68-4-R

Part NumberCTX68-4-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX68-4-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package600
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel67.08µH
Inductance - Connected In Series268.32µH
Tolerance±20%
Current Rating - Parallel1.2A
Current Rating - Series600mA
DC Resistance (DCR) - Parallel157mOhm Max
DC Resistance (DCR) - Series630mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.550" L x 0.550" W (13.97mm x 13.97mm)
Height0.250" (6.35mm)
